Brick Sorter

This device sorts 2x2 bricks into two piles - red on one side, blue on the other. The bricks slide down the chute on the right side until they rest against a light sensor. The light sensor determines what color the brick is, then uses a motor to slide the "arm" to the right or left to eject the brick. A touch sensor indicates when the arm has moved far enough, which is a signal for the motor to reverse and re-center the motor (again determined by the touch sensor).

Brick Sorter

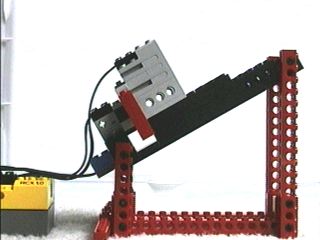

A side view of the sorter

Side View





A close up of the sorting arm - note the three "holes" used by the touch sensor to determine when to stop the arm's motion.

Arm Closeup





It really works...

After Sorting




NQC Source

Powered by NQC

/* sorter.nqc
 * written by Dave Baum for NQC 2.0
 */

#define EYE	SENSOR_1
#define BUMP SENSOR_3

#define ARM	OUT_A

/* you may need to adjust these */
#define COLOR_BLACK  45
#define COLOR_RED    51
#define BRICK_DELAY  10

task main()
{
	/* setup sensors */
	SetSensor(EYE, SENSOR_LIGHT);
	SetSensor(BUMP, SENSOR_TOUCH);

	/* run until there are no more bricks */
	while(EYE > COLOR_BLACK)
	{
		/* check color of brick */
		if (EYE > COLOR_RED)
			Fwd(ARM);
		else
			Rev(ARM);

		/* move arm to end */
		On(ARM);
		until(BUMP == 1);
		until(BUMP == 0);

		/* reverse direction arm */
		Toggle(ARM);

		/* wait until arm has returned to center */
		until(BUMP == 1);
		until(BUMP == 0);

		/* stop arm */
		Off(ARM);

		/* wait a little while for next brick to slide down */
		Wait(BRICK_DELAY);
	}
}
